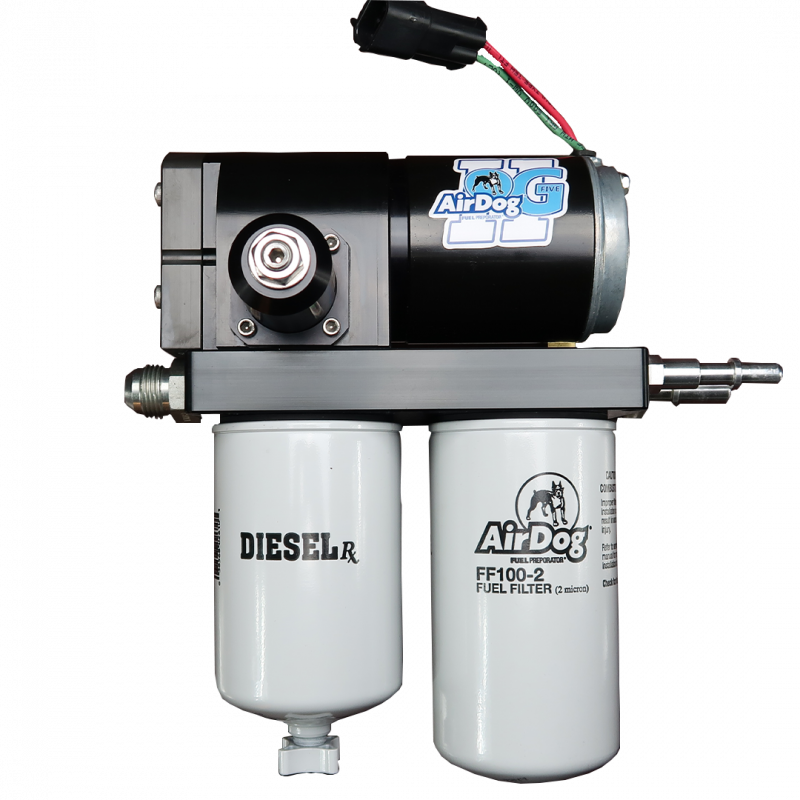

1998.5-2004 AirDog II 5G 165

An industry first! The AirDog® II-5G is the first diesel Fuel Air Separation System to include an...
Vendor: Airdog
SKU: 690
Availability: Many In Stock
$859.00
$859.00

An industry first! The AirDog® II-5G is the first diesel Fuel Air Separation System to include an integrated diaphragm fuel pressure regulator. This regulator allows for more fuel pressure adjustability, offers better fuel flow at pressure, and can be boost compensated! This system has larger porting to allow less cavitation and noise at the inlet of the higher flowing 220GPH pumps. All AirDog II-5G systems come with improved wiring harnesses and connectors as well! The wiring harness is now 12ga from the battery all the way to the internal connections in the motor. A Metri-Pack 280 connector replaces the Deutch 2 pin connector which allows more more current flow without creating excessive heat. All other connectors in the harness are weather pack to keep the elements out. This system has the same 4G motor technology that has proven itself to be a reliable, quiet operating system. It also retains the "Demand Flow" of the older AirDog II variants. Demand Flow means whatever fuel the injection system does not consume gets recirculated back through the filter base.

The AirDog® II-5G offers protection and performance like no other lift pump! Our patented air separation, along with a water separator and fuel filter makes sure your expensive injection system components get all the clean fuel they need. The AirDog® II-5G also overcomes loss of power due to driving in higher altitudes with a factory fuel pump.

The AirDog® II-5G System Improves Engine Performance by eliminating spray pattern disruption due to air entering the system. This allows the engine to keep its designed injection timing which allows a more complete burn of the fuel entering the cylinder. This increases overall engine efficiency across the power and torque range!

The AirDog® II-5G is diaphragm regulated for maximum fuel pressure stabilization. Removing all air, water, and debris from your diesel fuel combined with steady pressure leads to a long lasting injection system.


This is the AirDog II-5G DF-165-5G fuel system for the 1998.5-2004 Dodge Ram VP-44 and early CP3 5.9L. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system. A Fuel Module Upgrade Kit is installed in the factory fuel basket to pull fuel through a factory-style 1/2" bulkhead fitting. This will bypass the factory in-tank lift pump. The pressure side connects directly into the side of the injection pump, bypassing the factory fuel filter housing. The AirDog Air/Vapor return is sent back to the tank through the factory 3/8” suction line once the module is modified. This is a 165GPH (Gallon Per Hour) lift pump system for moderately modified trucks. Check out our installation manual for a list of parts that are included with this kit.

Length: 19
Width: 13
Height: 7
Weight: 27
