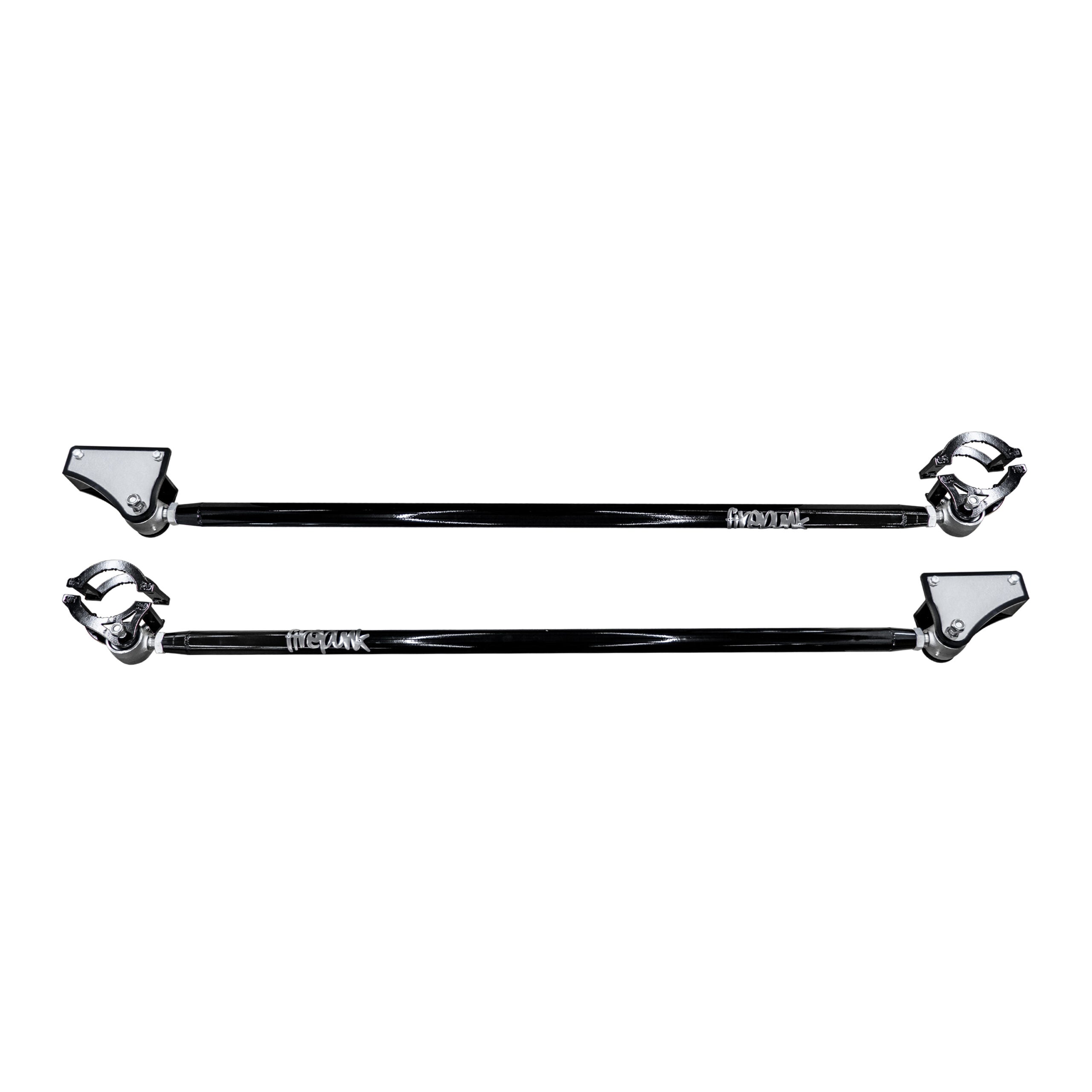

2003-2009 Firepunk 3rd Gen Bolt-on Traction Bars

This is a full bolt on traction
bar kit, no need for a welder. By using box-bolts and self-threading bolts we
can fasten the frame side brackets to a box frame without having to drill
through both sides of the frame. This allows us to install the brackets beside
the fuel tank without dropping the tank. This kit has all the hardware included
that you need for the install. It really doesn’t get any easier than
this.

Traction bars are a must if you
have any kind of performance upgrades. By eliminating axle wrap it saves
driveline components and makes shifts feel much less violent. These bars get
the job done and look good doing it.

Quadcab Short bed and Megacab Short bed bars are 60" Long

Standard Cab Long Bed and Quadcab Long bed bars are 78" Long

Traction bar
features.

Laser cut ¼”
steel brackets

TIG welded bars

Chromoly 1.75”
x .120” tubing

1” x 14
Chromoly tube ends

2.5” Forged Chromoly
Flex Joints

*If you desire a custom Powdercoat color, just note it in Custom Color Desired.

IT IS IMPORTANT THAT ALL JAM NUTS ARE TIGHT AND ARE CHECKED PERIODICALLY TO PROTECT THE THREADS OF THE JOINT. FIREPUNK WILL NOT BE RESPONSIBLE FOR ANY DAMAGED THREADS DUE TO JAM NUTS BEING LEFT LOOSE

Option Installation kit available, this kit includes

-3/8" center punch

-3/16" drill bit for pilot holes

-21/64" drill bit for self threading bolts

-9/16" drill bit for box bolts

-cutting oil
