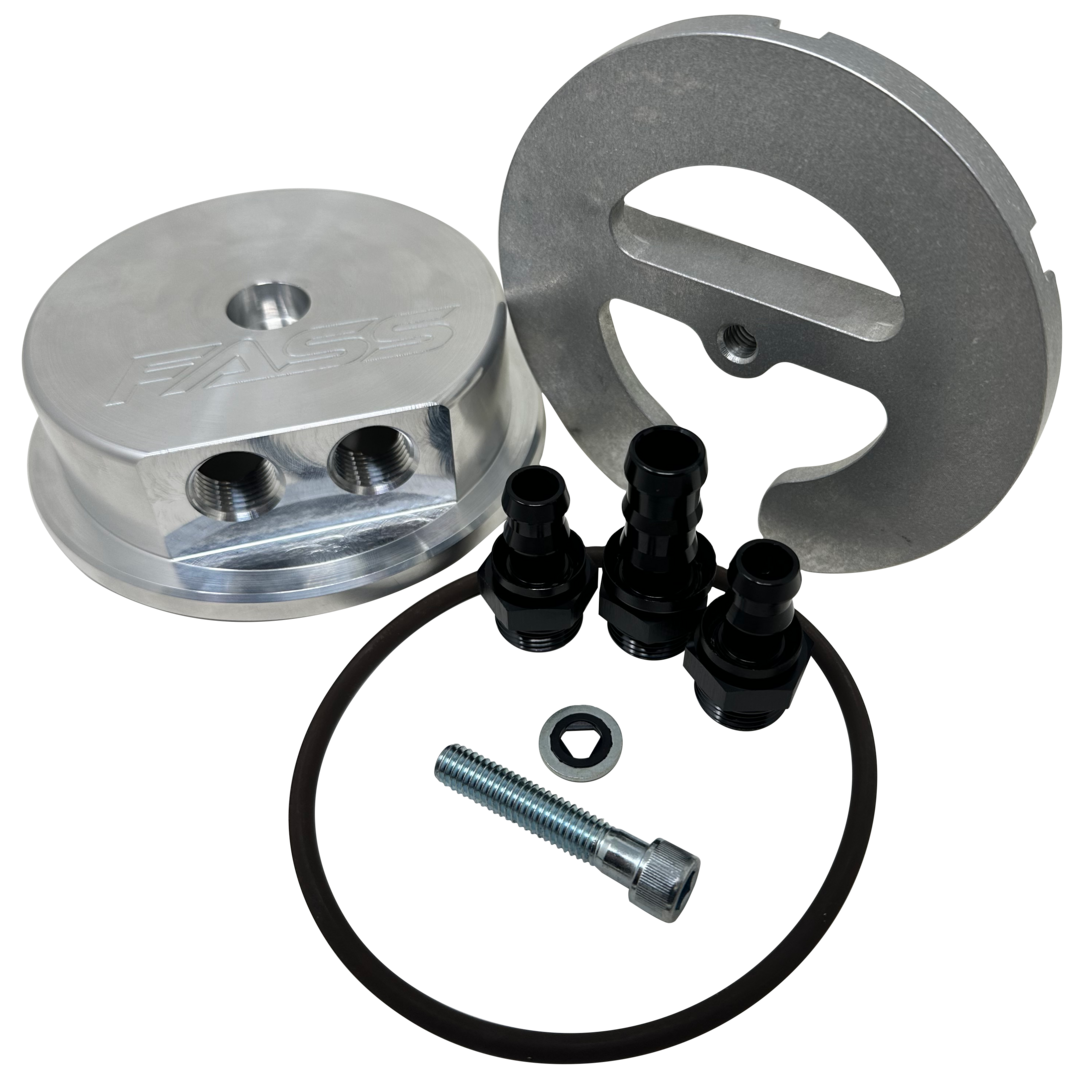

FASS Fuel Systems Diesel Fuel Sump Kit (SK5501)

FASS Fuel Systems Diesel Fuel Sump Kit (SK5501)

Part No: SK5501

Fitment: Universal Applications, Ford Powerstroke, GM Duramax and Dodge RAM Cummins:

Installing a FASS Fuel System has NEVER been easier! Our all-new Return Style Fuel Tank Sump Kit requires only a single hole to be drilled into the fuel tank and includes a -10 ORB return port, allowing you to plumb the FASS return line right to the Fuel Tank Sump.

This Return Style Fuel Tank Sump Kit also places the -10 ORB suction port at the lowest point in the fuel tank, ensuring unrestricted fuel flow to the FASS System.

Last but not least, the extra-large bowl acts as a reservoir—creating a consistent supply of fuel to the FASS System when running close to empty, or under heavy braking and acceleration.

Sump Fuel Bowl Kit Features:

• No Tank Drop Installation
• Lowers Fuel Suction Location to the Bottom of the Fuel Tank
• Eliminates 1/4 Tank Fuel Supply Issues
• Unique Single Bolt Design For Simple Installation
• ½” NPT Fuel Suction Port
• ½” NPT Fuel Return Port
• Extra Large Fuel Bowl
• 6061 Billet Aluminum

Please Note: This product is suggested to be installed with our FASS Titanium Signature Series Systems. The larger suction tubes and Fuel Sump Bowl improve fuel delivery and work perfectly with a higher volume fuel Systems.
